CNC & measuring systems

LaserTherm has precise CNC machines that are used for the manufacture of our products and for custom production too. These machines are from the world's leading manufacturers. We are able to ensure fast, accurate and high-quality production thanks to the machines according to the most demanding requirements of our customers.

FANUC ROBODRILL alfa - D21LiB5

Universal active 5-axis CNC miller

The new generation of vertical machining centre ROBODRILL promises unrivalled quality and accuracy with excellent hourly performance. The fastest and most powerful five-axis CNC machines on the market can change a tool in a very short time of 0.7 seconds and have a turret manipulating with tools of up to 4 kg.

Max. dimensions of

machined semi-finished product

X / Y / Z

5-axis machining 120x120x100 mm,

3-axis machining 200x200x300 mm

Max. table load

30 kg

Max. spindle speed:

24 000 rpm

Number of tools:

21

FANUC ROBODRILL α - D21LiB5

Kovosvit MAS MULTICUT 500i S

Multifunctional machine-milling centres form the transition between machining and milling machines, extending the technological capabilities of one universal machine to more technologies (machining, tapping, turning, drilling, boring, milling, grinding, gear hobbing and measuring). As standard, the machines are equipped with an axis - B, which provides the possibility of off-axis drilling and 5-axis milling. The machine MULTICUT 500i S (with right-hand spindle) enables complex machining from both sides of the machined parts.

S - design with right spindle



Max. turning diameter above glinding bar / lower saddle:

1030 mm

Max. machining diameter:

B=0° / 45° / 60° / 90° = 549 / 690 / 880 / 1030 mm

Max. machining length:

1500 mm

Max. bar capacity diameter:

94 mm

Kovosvit MAS MULTICUT 500i S

Supported with tip including clamp (at max. speed 300 rpm) = 2500 kg supported by follow-rest 1 (at max. speed 300min-1) kg = 2500 kg

DMG MORI clx 350

Complete precision turning and machining of complex parts thanks to auxiliary spindle and Y axis.

Max. turning diameter:

220 mm

Max. work piece length with a tailstock (can be machined):

400 mm

Max. chuck size:

250 mm

Max spindle motor speed:

5 000 rpm

Max. bar capacity diameter:

65 mm

Max. speed of powered tools:

5 000 rpm

DMG MORI CLX 350 s proti vřetenem

Y axis with travel range ± 40 mm for superior milling operations, i. e. for complete lateral surface machining

Higher efficiency thanks to bar feeder machining

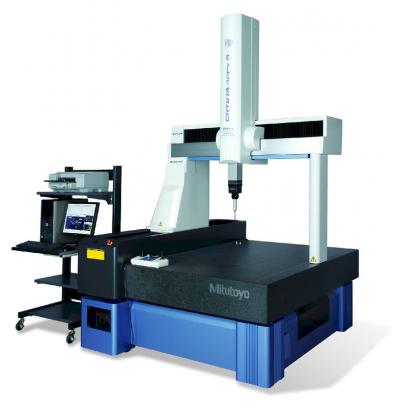

Mitutoyo CNC CMM, Crysta-Apex S574

Processing accuracy is verified at the Mitutoyo CNC CMM measuring centre, Crysta-Apex S574.



Top quality processing is the cornerstone for the long-term and stable function of our products. LaserTherm invests in the best industrial measurement systems.



Multi-sensor capability.

Measuring range:

500 x 700 x 400 mm

Weight of the measured unit:

180 kg

Height of the measured unit:

545 mm
