Seam tracking systems
Seam tracking systems in laser applications enable significantly more precise and efficient processes and define new standards in the areas of laser technologies.

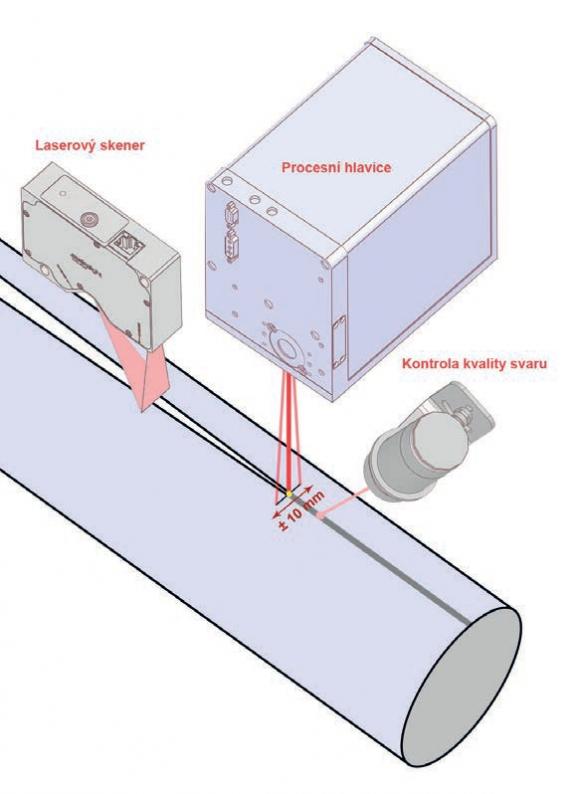

Systems with beam deflection
- Improving the quality and process stability
- Possible to integrate into existing applications
- Processing of a wider range of materials and products
- Increasing the utilization efficiency of the laser source
- Effective guidance on the seam / edge with an accuracy of 0.05 mm
Principle of operation:
- Designed for welding material of thickness 0.05-10 mm
- Max. seam deflection: ± 10 mm • Max. welding speed of 20 m/min
- The Wobble welding function (oscillation of the laser beam during welding)
- Comprehensive solution for simple replacement of conventional welding technology
- Measured guidance accuracy: ± 0.02 mm • Suitable for all common laser sources to 5 kW

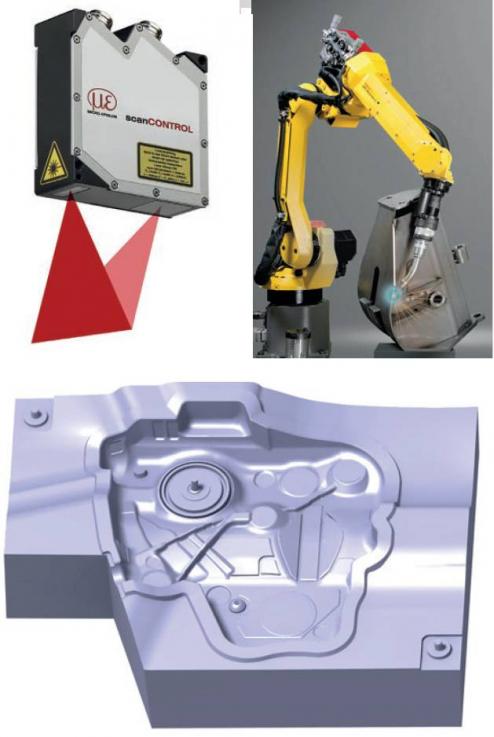

Robotic application
- Designed for processing of complex shaped parts
- Can be integrated with any existing robotic system
- Combining the laser profile scanner, conventional processing head and special software
- Usable for both conventional and also laser technology, especially hardening, cladding, welding and 3D cutting
Principle of operation
- Scan a complex-shaped components
- Vectorization of scanned point cloud
- Generation of 3D model
- Marking the desired trajectory
- Program generation to move the robot along the desired trajector
